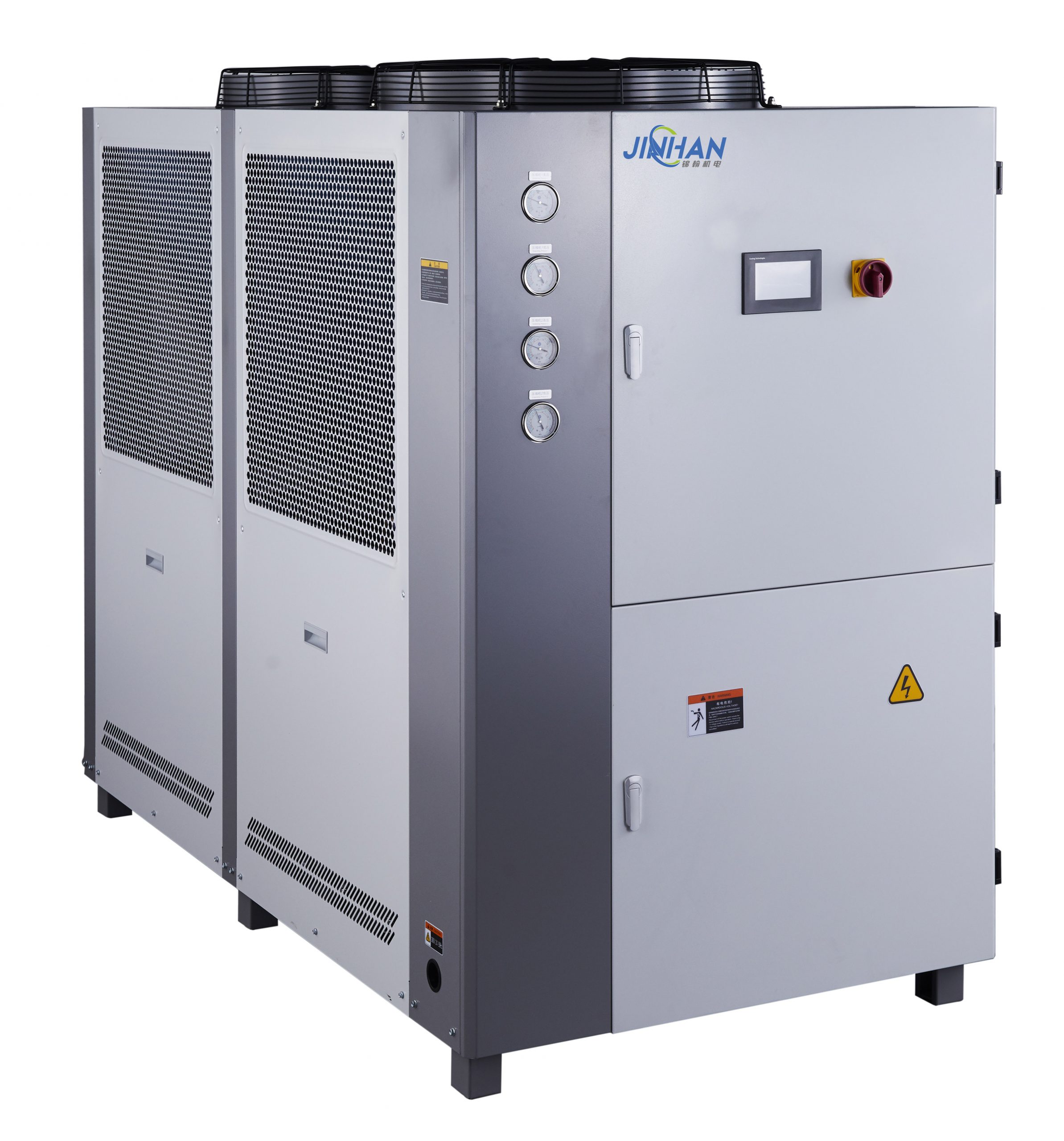

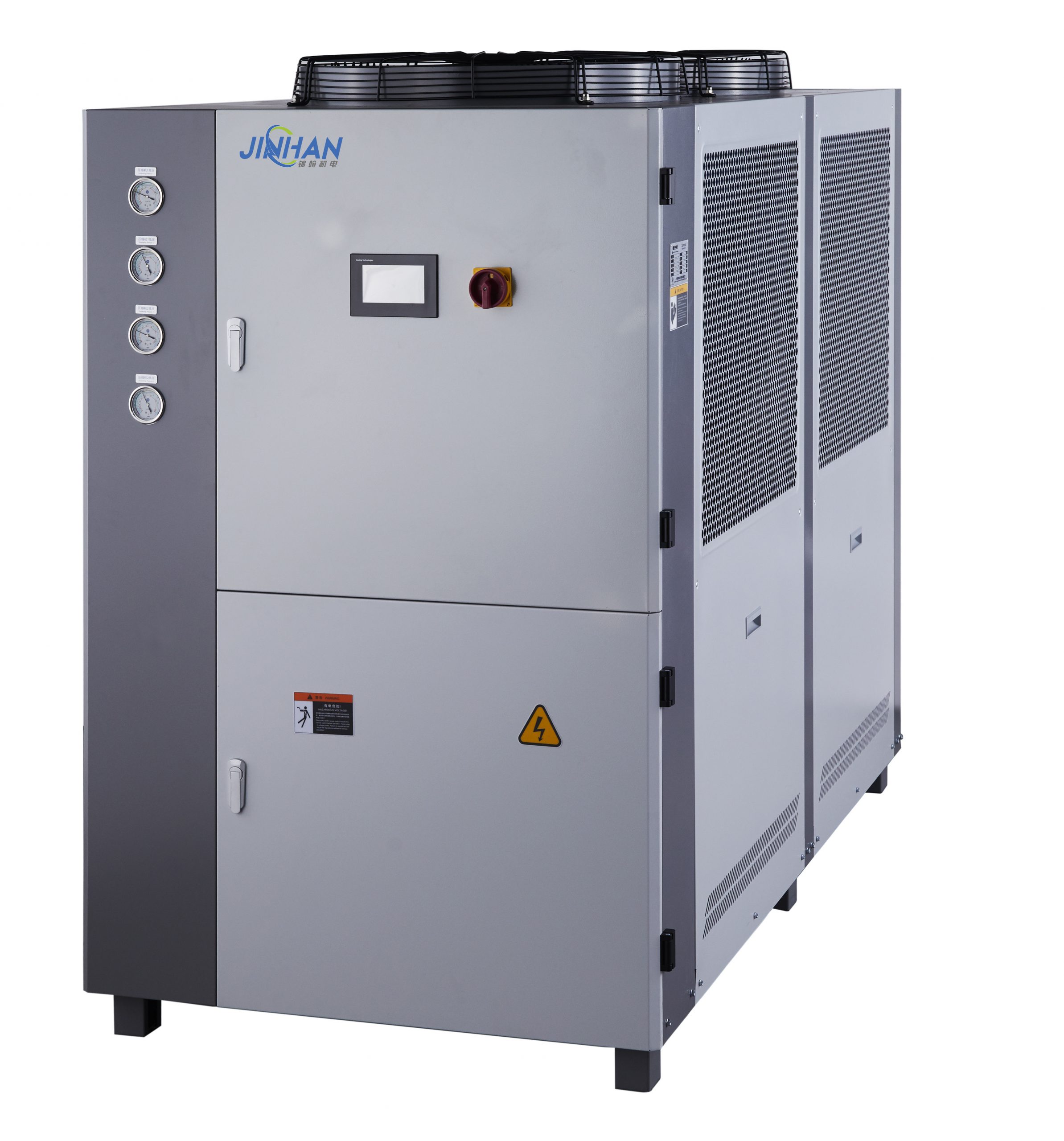

Air Cooled Industrial Chiller
JH-FL-15
Cooling capacity: 44kW
- Easy operating，high efficiency and energy saving.
- Intelligent multi-protection function of Over temp alarm, Overload alarm, Self-diagnosis, Intelligent antifreeze, Flow alarm, Water level alarm, Pressure Alarm, etc.
- Long service life with stable performance.
| Air Cooled Industrial Chiller | ||||
| Model | JH-FL-15 | |||
| Item | ||||
| Cooling capacity | kW | 44 | ||
| 103 kcal/h | 37.8 | |||
| Power source | V/ph/Hz | 380/3/50 | ||
| Gross power | kW | 13.7 | ||
| Rated current | A | 28 | ||
| Compressor | Type | Scroll type | ||
| Power | kW | 11.5 | ||
| Condenser | Type | Efficient inner fin coil type | ||
| Max. pressure | 3.5 MPa | |||
| Fan type | The efficiency and low noise outer rotor fan | |||
| Evaporator | Type | Shell and tube type | ||
| Tank volume | L | 230 | ||
| Temp. range | ℃ | 5-30 Adjustable | ||
| Water flow rate | m3/h | 7.6 | ||
| L/min | 127 | |||
| Pipe size | DN | 40 | ||
| Water Max. pressure | 1.5 MPa | |||
| Pump | Type | Stainless steel centrifugal type | ||
| Power | kW | 1 | ||
| Head | m | 24 | ||
| Refrigerant | Type | R22 | ||
| Throttling type | Thermal expansion valve | |||
| Protector | Pressure、0verload、Anti-freeze、Delay、Over-temperature、Flow | |||
| Noise lever | dB(A) | 66 | ||
| Unit weight | kg | 400 | ||
| Running weight | kg | 430 | ||
| Dim. | L*W*H | mm | 1785*915*1630 | |
| The above cooling capacity is based on the ambient temperature 35℃, the outlet 7℃. | ||||
- Brand quality raw materials
- Advanced production equipment and technology
- Own R&D team assure the premium stable quality and technical support
- Full range product assortments for your choice
- Customized solutions supported
Core Value
Hundreds of modelsImportd Brand Compressor
Excellent quality, provide lasting power!
Stainless steel tube evaporator
Stainless steel shell, industrial grade internal thread copper pipe, no "leakage" can be hit!
Touch screen controller
5 "color screen, dynamic display, detached experience
High efficiency low noise fan
Excellent performance, adapt to a variety of complex environment
Copper tube condenser with internal thread
Trapezoidal internal thread structure, efficiency increase by 30%
Brand Electrical Components
Electrical components are famous brands, reliable quality!
Multiple Protection
Overtemperature protection
Current protection
Self diagnosis
Intelligent antifreeze
Water flow alarm
Water level alarm
Pressure alarm
Time switching machine
Intelligent control
The data changes in a second
Color touch screen 5 inches HD true color touch screen, touch sensitive. Simple and fast operation, dynamic display unit operation!
Dynamic monitoring allows "no escape from failure"
Dynamic monitoring operation automatically displays the compressor, water pump and other working conditions, the unit state at a glance, all in control.
A "week by week" schedule relaxes your management
Cycle timing function Cycle timing function can operate the temperature pipeline effectively, and the unit start and stop time can be set freely within a week.
Intelligent anti-freezing can also operate in winter, such as "flying"
Intelligent antifreeze function When the water temperature is low, the unit automatically enters the antifreeze mode, no need to worry about the unit freezing!
Self-diagnosis is more than sweet
Self-diagnosis powerful self-diagnosis function, so that you easilly diagnose the fault.
That's how stable condensation control is
Condensation temperature control Intelligent control of condensing temperature, hight efficiency and energy saving, to ensure the compressor continuous and stable work.
Perfect Detail
- Danfoss expansion valve
- Each pipe fitting is made of stainless steel
- Each circuit is clearly classified
- Every piece of sheet metal is itted together
- All solider joints are cleaned
- Stainless steel water pump
- Brand Electrical Components
- Danfoss drying filter
- Scientific Research.
- Automobile Industry.
- Food & Drinks Industry.
- Paper & Printing Industry.
- Heavy Machinery Industry.
- Plastic & Rubber Industry.
- Electronic & Chip Industry.
- Chemical & Pharmaceutical Industry.
