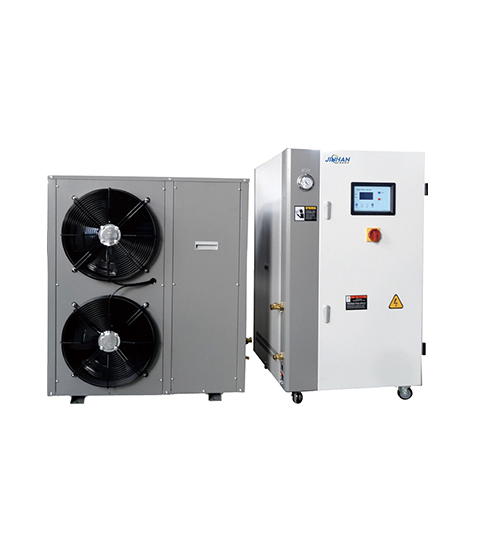

Split Industrial Chiller

JH-FT

Cooling Capacity: 9.1kW~140kW

  • Easy operating，high efficiency and energy saving.
  • Intelligent multi-protection function of Over temp alarm, Overload alarm, Self-diagnosis, Intelligent antifreeze, Flow alarm, Water level alarm, Pressure Alarm, etc.
  • Long service life with stable performance.
Download Contact Us
Split Industrial Chiller
Model JH-FT-3S JH-FT-5S JH-FT-6S JH-FT-8S JH-FT-10S JH-FT-12S JH-FT-15S JH-FT-20S JH-FT-25S JH-FT-30S JH-FT-40S JH-FT-50S
Item
Cooling capacity kW 9.1 15 18 23 29.5 35 44 58.5 69 86 116 140
103 kcal/h 7.8 12.9 15.5 19.8 25.4 30.1 37.8 50.3 59.3 74.1 100 120
Power source V/ph/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Gross power kW 3.1 4.8 5.3 7.9 9.8 10.5 13.7 20 22 29 34.7 44
Rated current A 7 9.3 10.2 15 18 21 28 38 45.5 58 66 80
Compressor Type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type
Power kW 2.5 4.2 4.7 6.6 8.5 9.2 11.5 16.2 18.2 24.8 30.6 36.5
Pump Power kW 0.37 0.37 0.55 0.55 0.75 0.75 1 1.5 1.5 1.5 1.85 3
Head m 25 23 20.5 25 22 20 25 23 20.5 25 22 20
Water flow rate m3/h 1.6 2.6 3.1 4 5.1 6 7.6 10 11.8 14.8 20 24
L/min 26.7 43.3 51.7 66.7 85 100 127 167 197 247 333 400
Tank volume L 60 70 70 100 135 135 155 230 230 230 300 300
Pipe size DN 25 25 25 25 40 40 40 50 50 50 50 65
Noise lever dB(A) 60 61 62 64 65 65 66 67 68 68 69 69
Unit weight kg 190 250 290 330 380 400 460 680 820 1020 1250 1450
Dimensions L mm 850/950 850/950 1220/950 1220/1200 1220/1700 1220/1700 1220/1900 2080/1610 2080/1610 2080/1610 2200/905 3080/1610
W mm 720/390 720/390 720/390 720/380 720/550 720/550 720/500 1050/905 1050/905 1050/905 1200/905 1200/905
H mm 1265/750 1265/1070 1265/1070 1265/1350 1265/750 1265/750 1265/950 1570/1565 1570/1565 1570/1565 1570/1565 1570/1565
The above cooling capacity is based on the ambient temperature 35℃, the outlet 7℃.
  • Brand quality raw materials
  • Advanced production equipment and technology
  • Own R&D team assure the premium stable quality and technical support
  • Full range product assortments for your choice
  • Customized solutions supported

Core Value

Hundreds of models

Importd Brand Compressor

Excellent quality, provide lasting power!

Stainless steel tube evaporator

Stainless steel shell, industrial grade internal thread copper pipe, no "leakage" can be hit!

Touch screen controller

5 "color screen, dynamic display, detached experience

High efficiency low noise fan

Excellent performance, adapt to a variety of complex environment

Copper tube condenser with internal thread

Trapezoidal internal thread structure, efficiency increase by 30%

Brand Electrical Components

Electrical components are famous brands, reliable quality!

Multiple Protection

Overtemperature protection

Current protection

Self diagnosis

Intelligent antifreeze

Water flow alarm

Water level alarm

Pressure alarm

Time switching machine

Intelligent control

The data changes in a second

Color touch screen 5 inches HD true color touch screen, touch sensitive. Simple and fast operation, dynamic display unit operation!

Dynamic monitoring allows "no escape from failure"

Dynamic monitoring operation automatically displays the compressor, water pump and other working conditions, the unit state at a glance, all in control.

A "week by week" schedule relaxes your management

Cycle timing function Cycle timing function can operate the temperature pipeline effectively, and the unit start and stop time can be set freely within a week.

Intelligent anti-freezing can also operate in winter, such as "flying"

Intelligent antifreeze function When the water temperature is low, the unit automatically enters the antifreeze mode, no need to worry about the unit freezing!

Self-diagnosis is more than sweet

Self-diagnosis powerful self-diagnosis function, so that you easilly diagnose the fault.

That's how stable condensation control is

Condensation temperature control Intelligent control of condensing temperature, hight efficiency and energy saving, to ensure the compressor continuous and stable work.

Perfect Detail
  • Danfoss expansion valve
  • Each pipe fitting is made of stainless steel
  • Each circuit is clearly classified
  • Every piece of sheet metal is itted together
  • All solider joints are cleaned
  • Stainless steel water pump
  • Brand Electrical Components
  • Danfoss drying filter



  • Scientific Research.
  • Automobile Industry.
  • Food & Drinks Industry.
  • Paper & Printing Industry.
  • Heavy Machinery Industry.
  • Plastic & Rubber Industry.
  • Electronic & Chip Industry.
  • Chemical & Pharmaceutical Industry.
