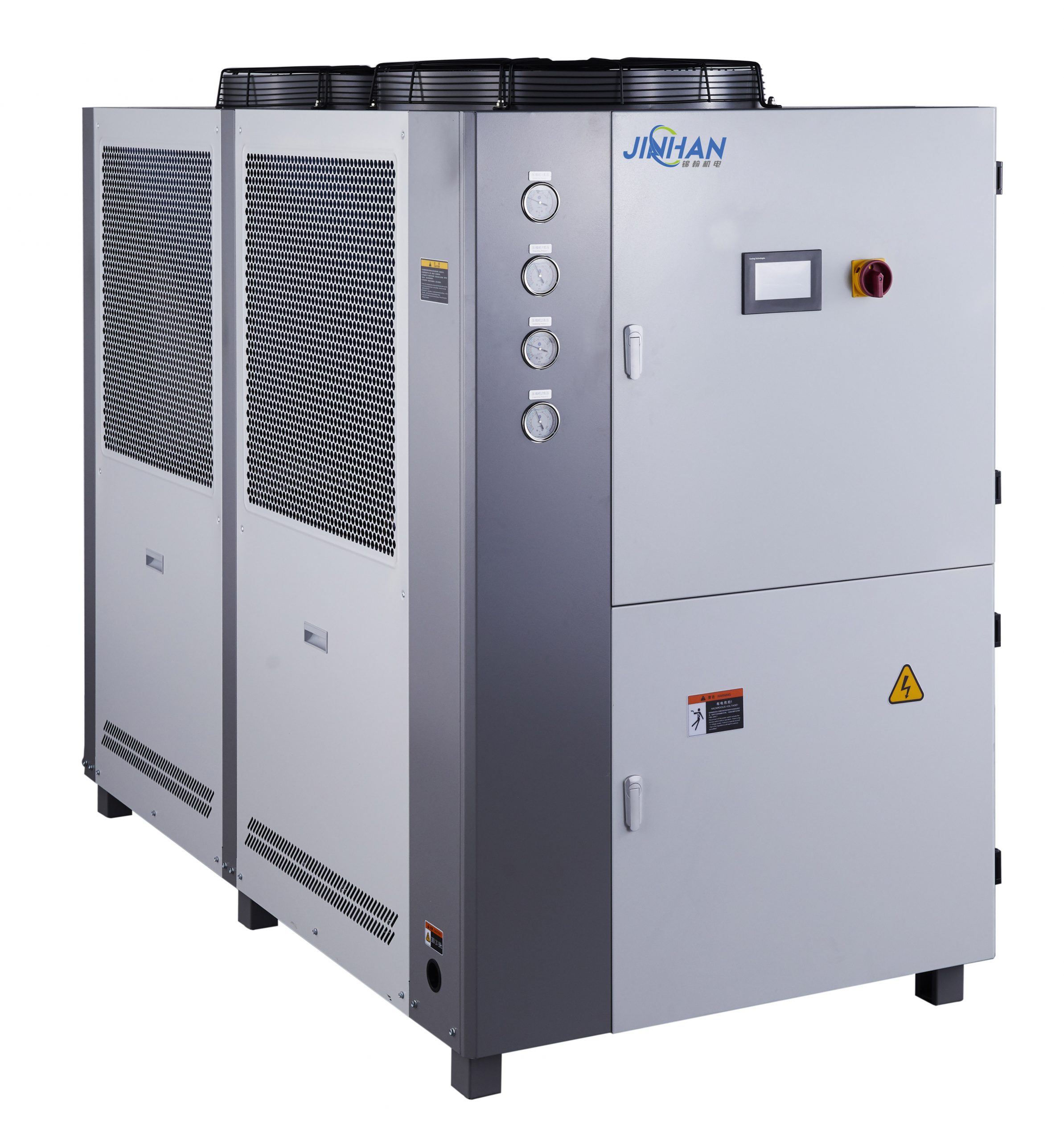

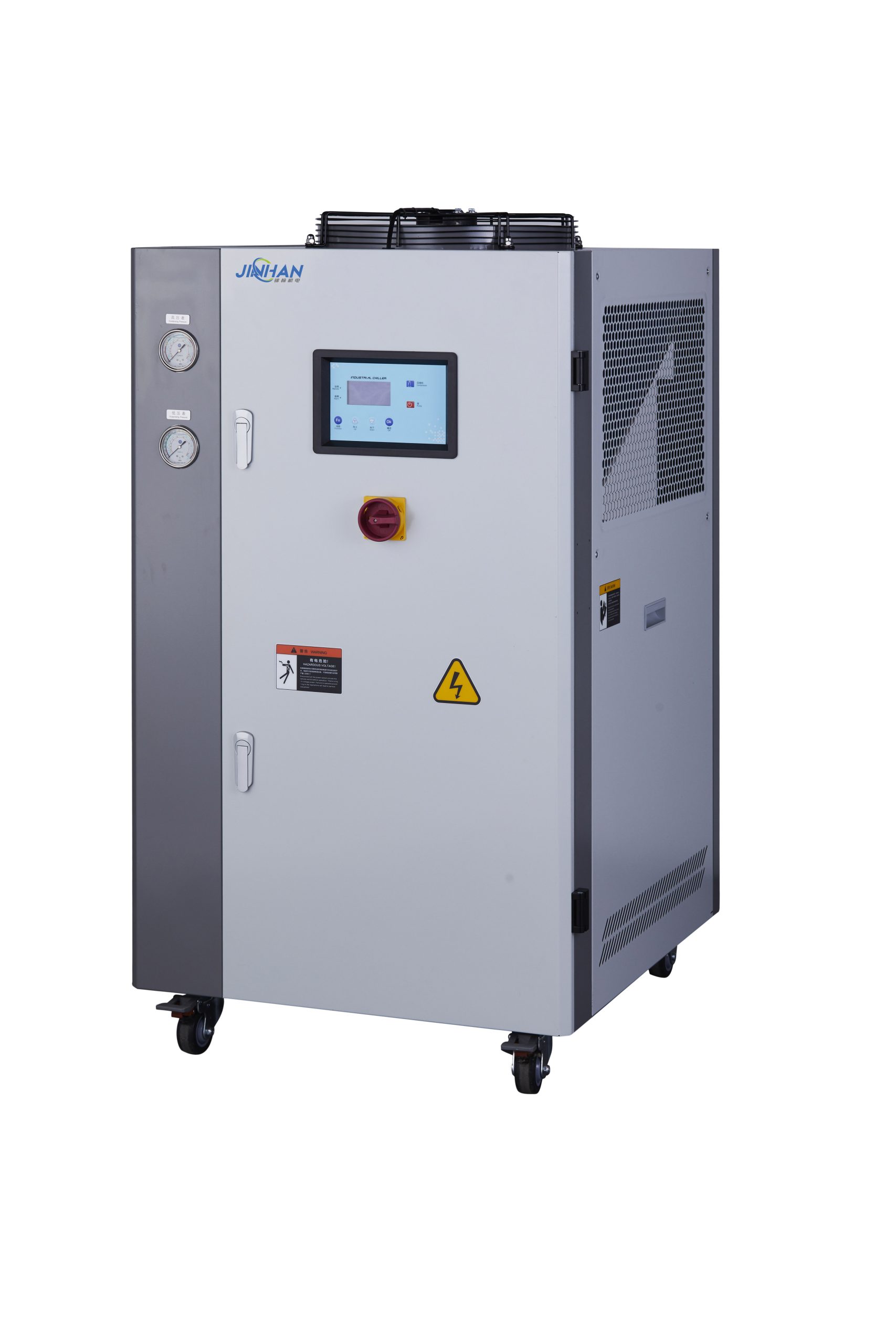

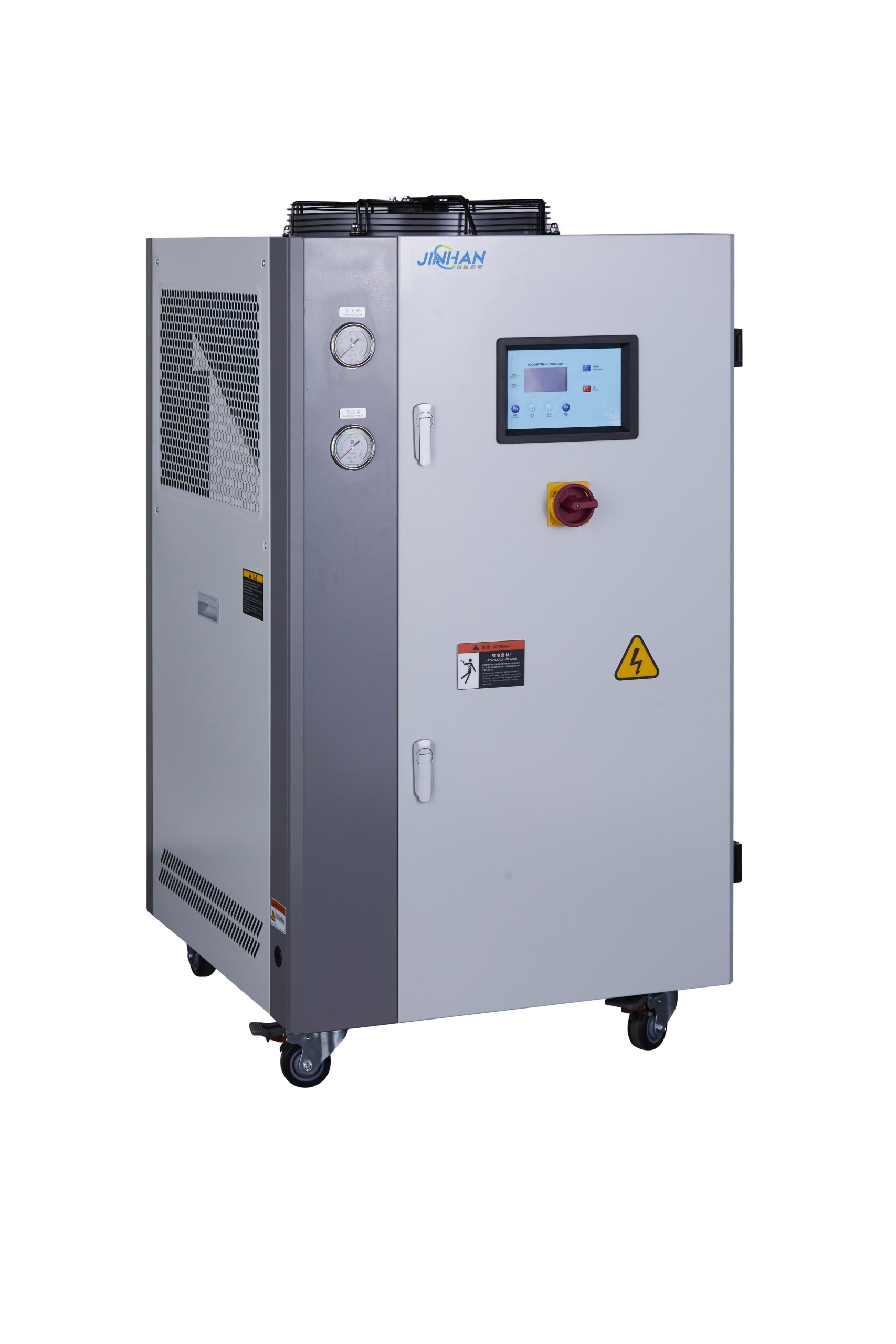

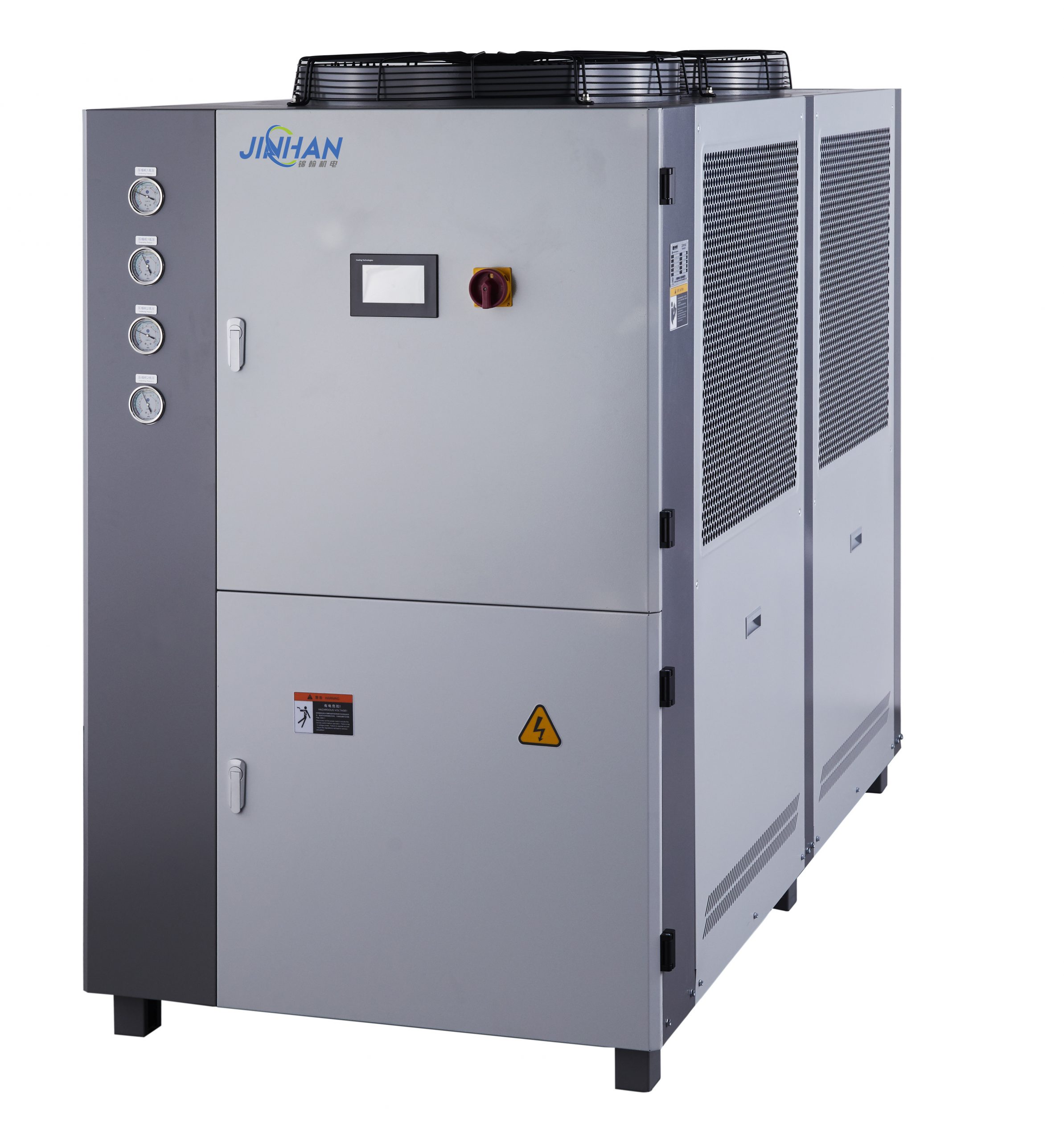

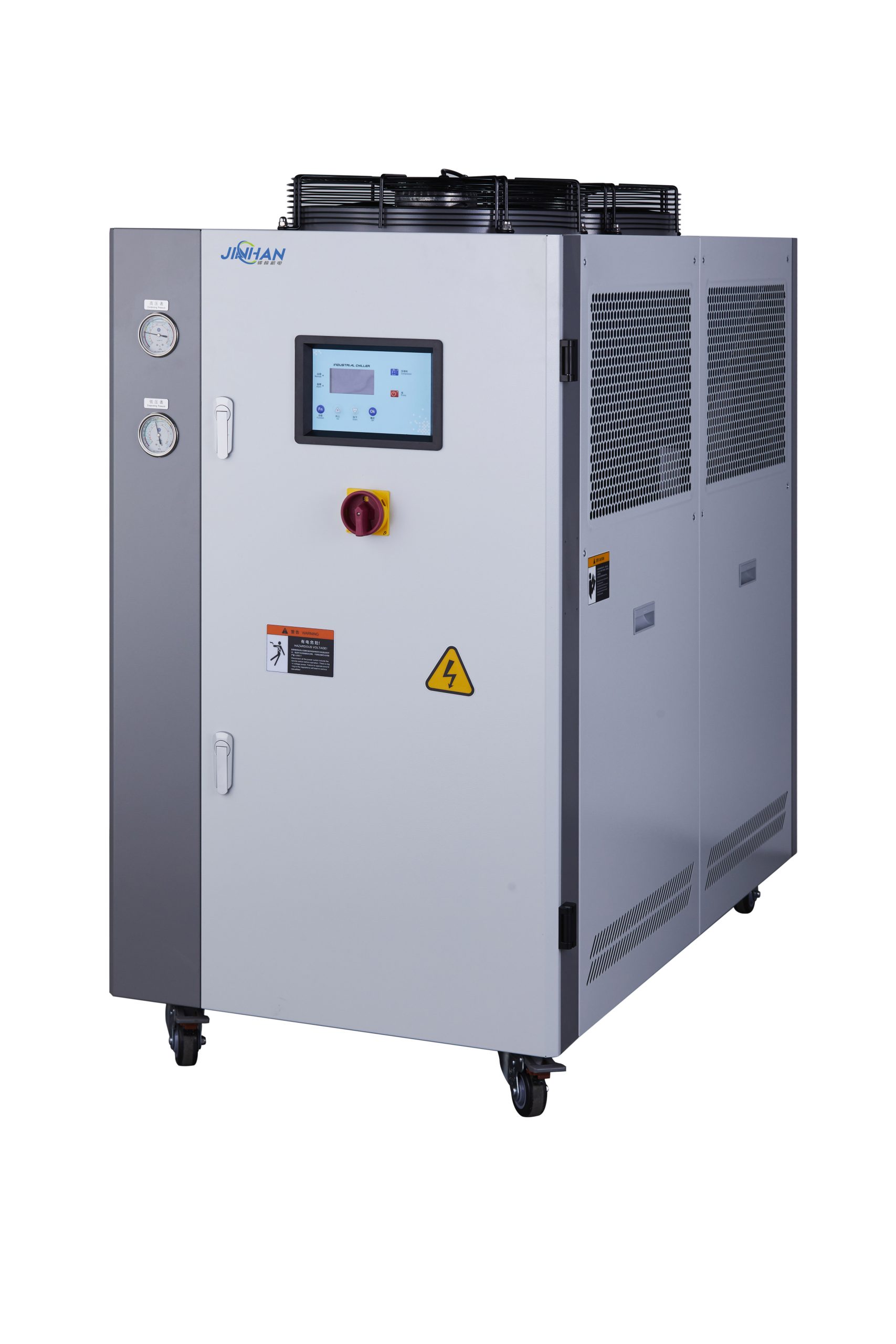

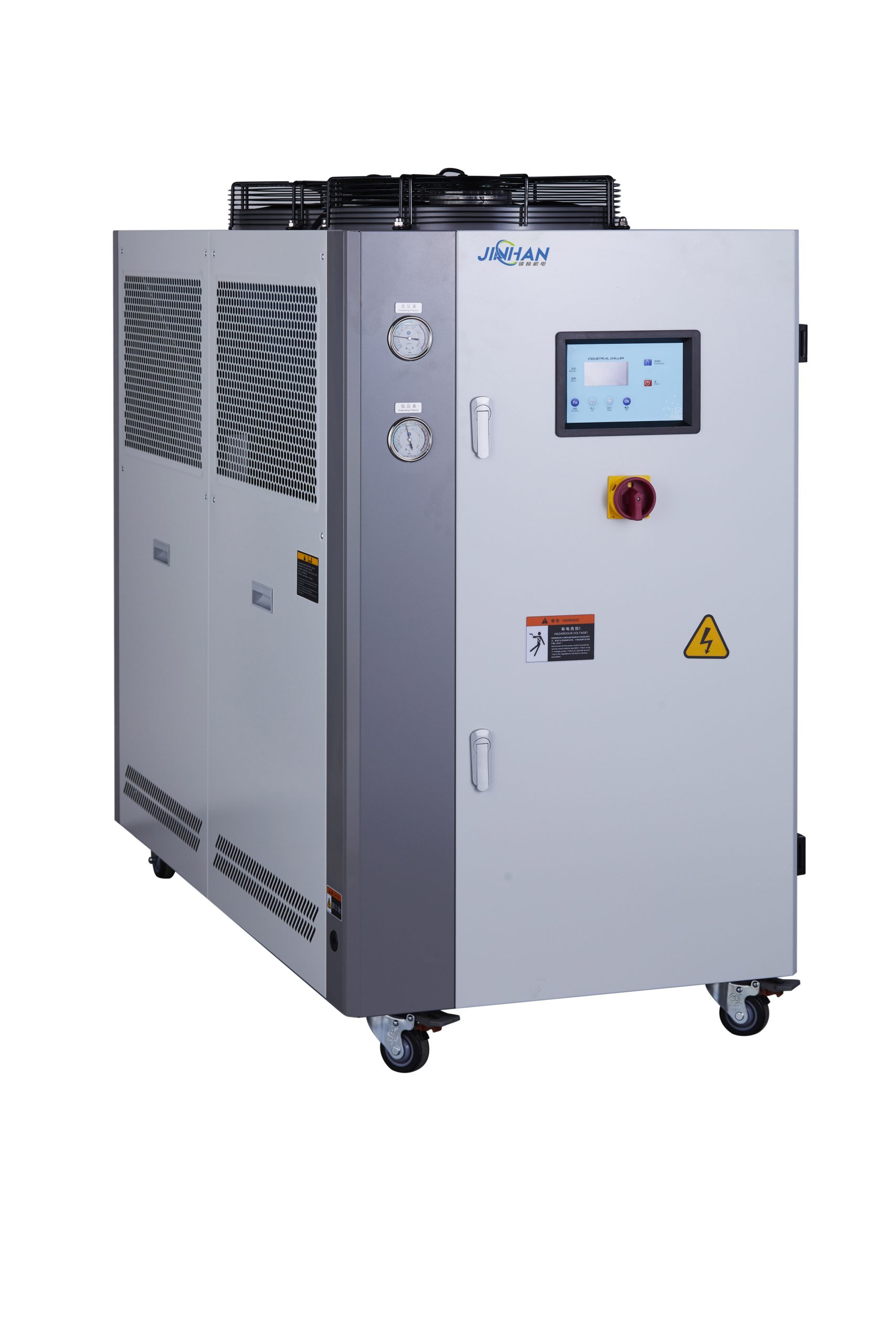

-15℃ Air Cooled Industrial Chiller

JH-FL-L

Cooling capacity: 1.9kW~54kW

  • Easy operating，high efficiency and energy saving.
  • Intelligent multi-protection function of Over temp alarm, Overload alarm, Self-diagnosis, Intelligent antifreeze, Flow alarm, Water level alarm, Pressure Alarm, etc.
  • Long service life with stable performance.
Download Contact Us
 -15℃ Air Cooled Industrial Chiller
Model JH-FL-2L JH-FL-3L JH-FL-5L JH-FL-8L JH-FL-10L JH-FL-12L JH-FL-15L JH-FL-20L JH-FL-25L JH-FL-30L JH-FL-40L JH-FL-50L
 Item
Cooling capacity kW 1.9 3.1 5.2 7.4 10.6 13.5 15.8 21.2 27 31.8 42.5 54
103 kcal/h 1.6 2.7 4.5 6.5 9.1 11.6 13.6 18.2 23.2 27.3 36.5 46.5
Power source V/ph/Hz 220/1/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Gross power kW 2.9 3.7 5.8 9 10.9 12.7 16.9 21.9 27.3 32.6 42.8 51.7
Rated current A 6.5 8.4 12.8 20.5 24 28 38 50 60 72 95 115
Compressor Type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type Scroll type
Power kW 2.3 2.8 4.8 7.2 9.1 11 11.5 16 18 23 32 36
Pump Power kW 0.37 0.75 0.75 1.3 1.3 1.3 2.2 2.2 3 3 3 3
Head m 42 44 41 45 42 40 40 42 41 45 42 40
Water flow rate m3/h 0.33 0.53 0.89 1.3 1.8 2.3 2.7 3.6 4.6 5.5 7.3 9.3
L/min 5.5 8.8 14.8 21.7 30 38.3 45 60 77 92 122 155
Tank volume L 40 60 70 100 155 155 230 230 230 230 300 300
Pipe size DN 20 25 25 25 40 40 40 50 50 50 50 65
Noise lever dB(A) 58 60 61 64 65 66 66 68 68 69 69 69
Unit weight kg 120 160 200 240 280 320 400 600 750 900 1100 1300

Dimensions		 L mm 600 850 1220 1505 1710 1710 1785 2080 2080 2080 2200 3000
W mm 600 720 720 720 795 795 915 1050 1050 1050 1200 1200
H mm 1160 1325 1325 1325 1490 1490 1630 1680 1680 1680 1880 1880
The above cooling capacity is based on the ambient temperature 35℃, the outlet -5℃.
  • Brand quality raw materials
  • Advanced production equipment and technology
  • Own R&D team assure the premium stable quality and technical support
  • Full range product assortments for your choice
  • Customized solutions supported

Core Value

Hundreds of models

Importd Brand Compressor

Excellent quality, provide lasting power!

Stainless steel tube evaporator

Stainless steel shell, industrial grade internal thread copper pipe, no "leakage" can be hit!

Touch screen controller

5 "color screen, dynamic display, detached experience

High efficiency low noise fan

Excellent performance, adapt to a variety of complex environment

Copper tube condenser with internal thread

Trapezoidal internal thread structure, efficiency increase by 30%

Brand Electrical Components

Electrical components are famous brands, reliable quality!

Multiple Protection

Overtemperature protection

Current protection

Self diagnosis

Intelligent antifreeze

Water flow alarm

Water level alarm

Pressure alarm

Time switching machine

Intelligent control

The data changes in a second

Color touch screen 5 inches HD true color touch screen, touch sensitive. Simple and fast operation, dynamic display unit operation!

Dynamic monitoring allows "no escape from failure"

Dynamic monitoring operation automatically displays the compressor, water pump and other working conditions, the unit state at a glance, all in control.

A "week by week" schedule relaxes your management

Cycle timing function Cycle timing function can operate the temperature pipeline effectively, and the unit start and stop time can be set freely within a week.

Intelligent anti-freezing can also operate in winter, such as "flying"

Intelligent antifreeze function When the water temperature is low, the unit automatically enters the antifreeze mode, no need to worry about the unit freezing!

Self-diagnosis is more than sweet

Self-diagnosis powerful self-diagnosis function, so that you easilly diagnose the fault.

That's how stable condensation control is

Condensation temperature control Intelligent control of condensing temperature, hight efficiency and energy saving, to ensure the compressor continuous and stable work.

Perfect Detail
  • Danfoss expansion valve
  • Each pipe fitting is made of stainless steel
  • Each circuit is clearly classified
  • Every piece of sheet metal is itted together
  • All solider joints are cleaned
  • Stainless steel water pump
  • Brand Electrical Components
  • Danfoss drying filter



  • Scientific Research.
  • Automobile Industry.
  • Food & Drinks Industry.
  • Paper & Printing Industry.
  • Heavy Machinery Industry.
  • Plastic & Rubber Industry.
  • Electronic & Chip Industry.
  • Chemical & Pharmaceutical Industry.
