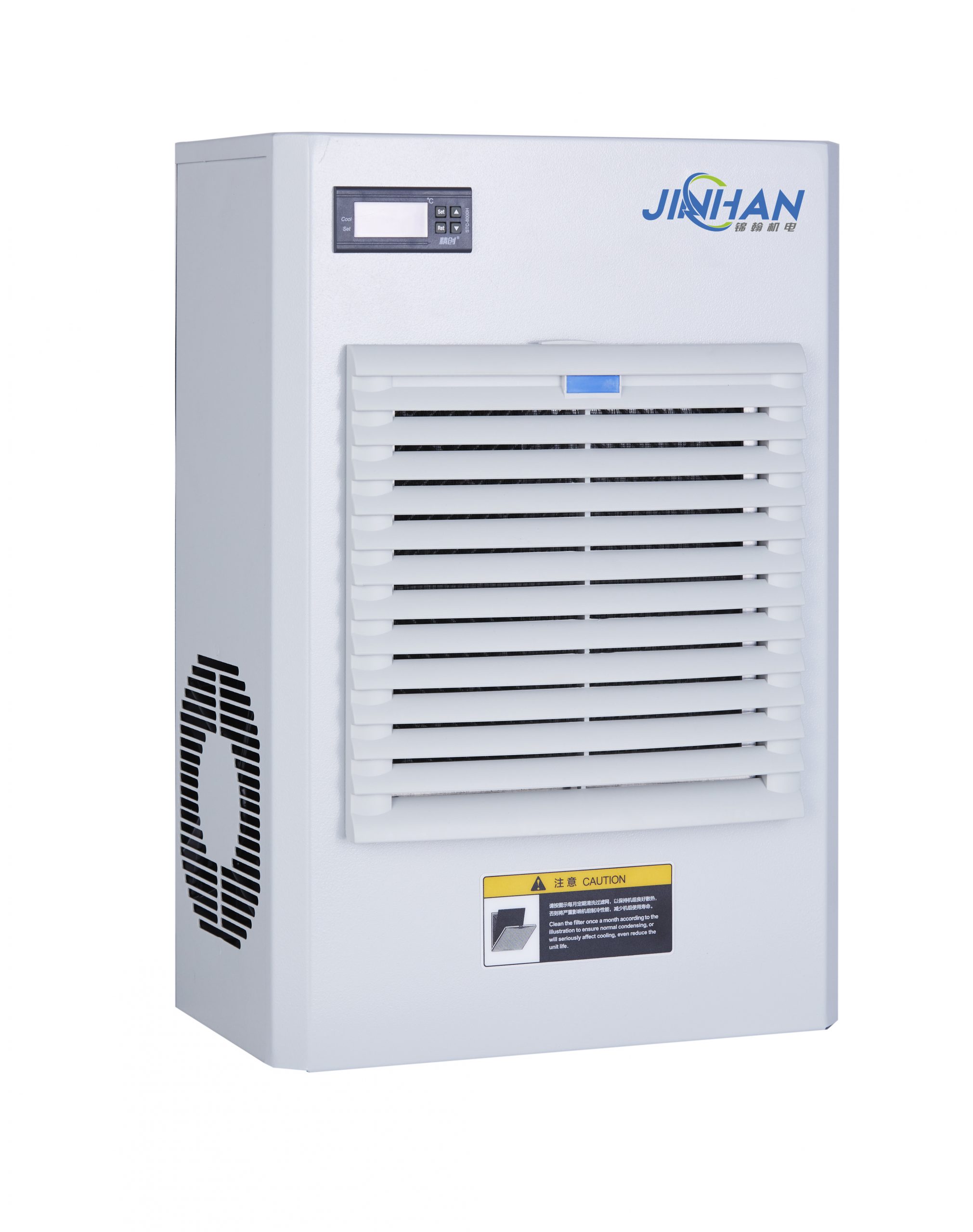

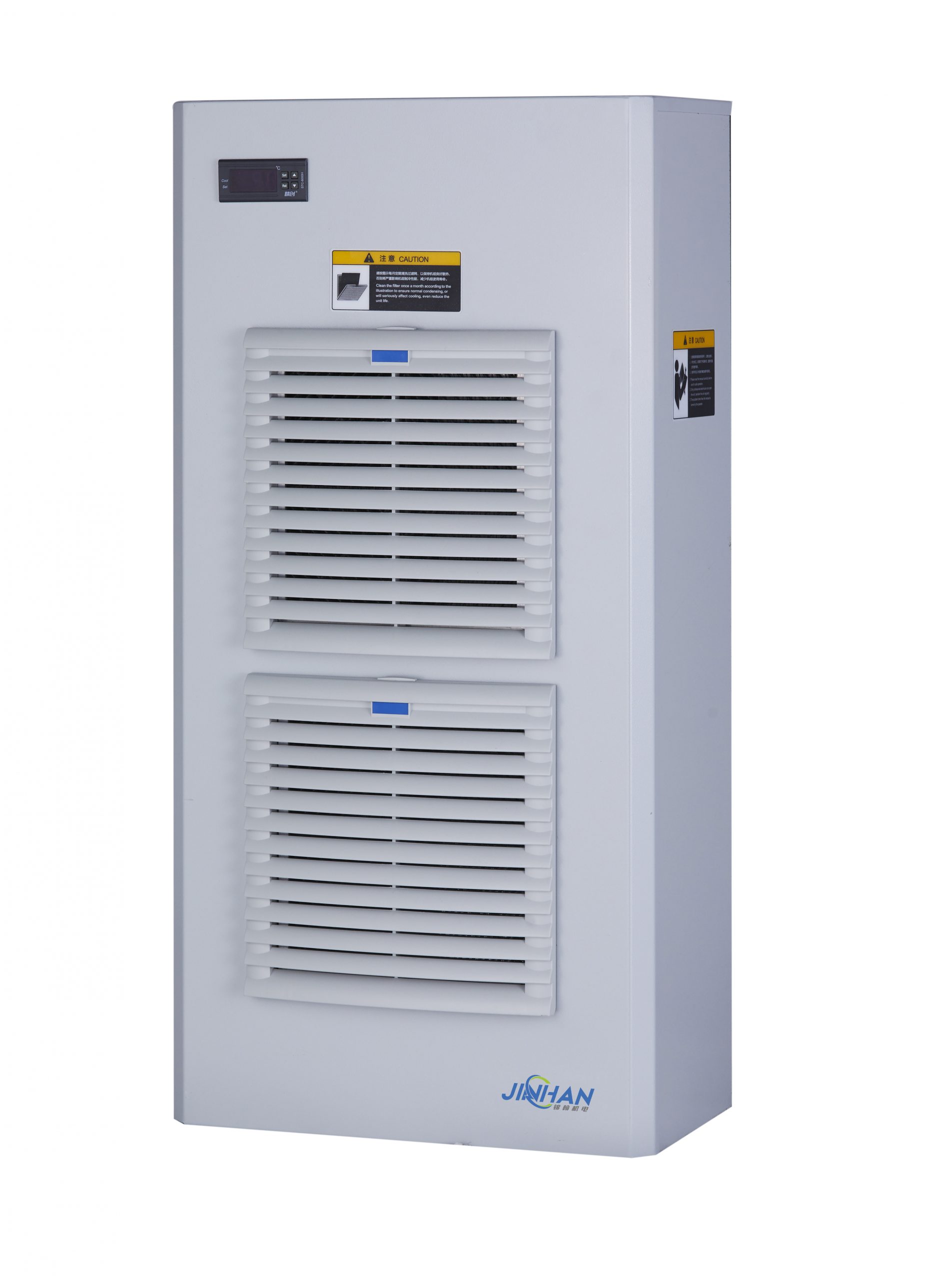

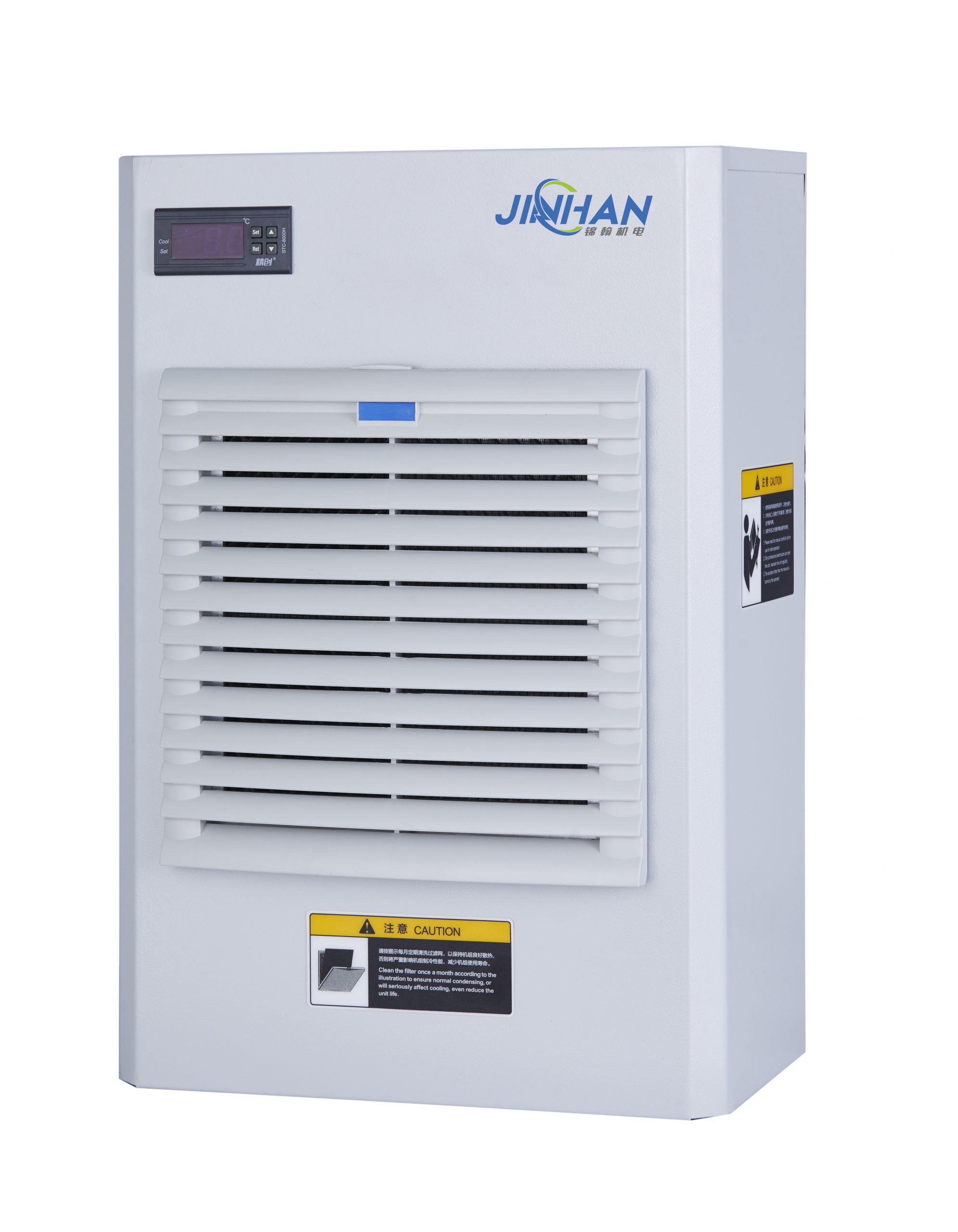

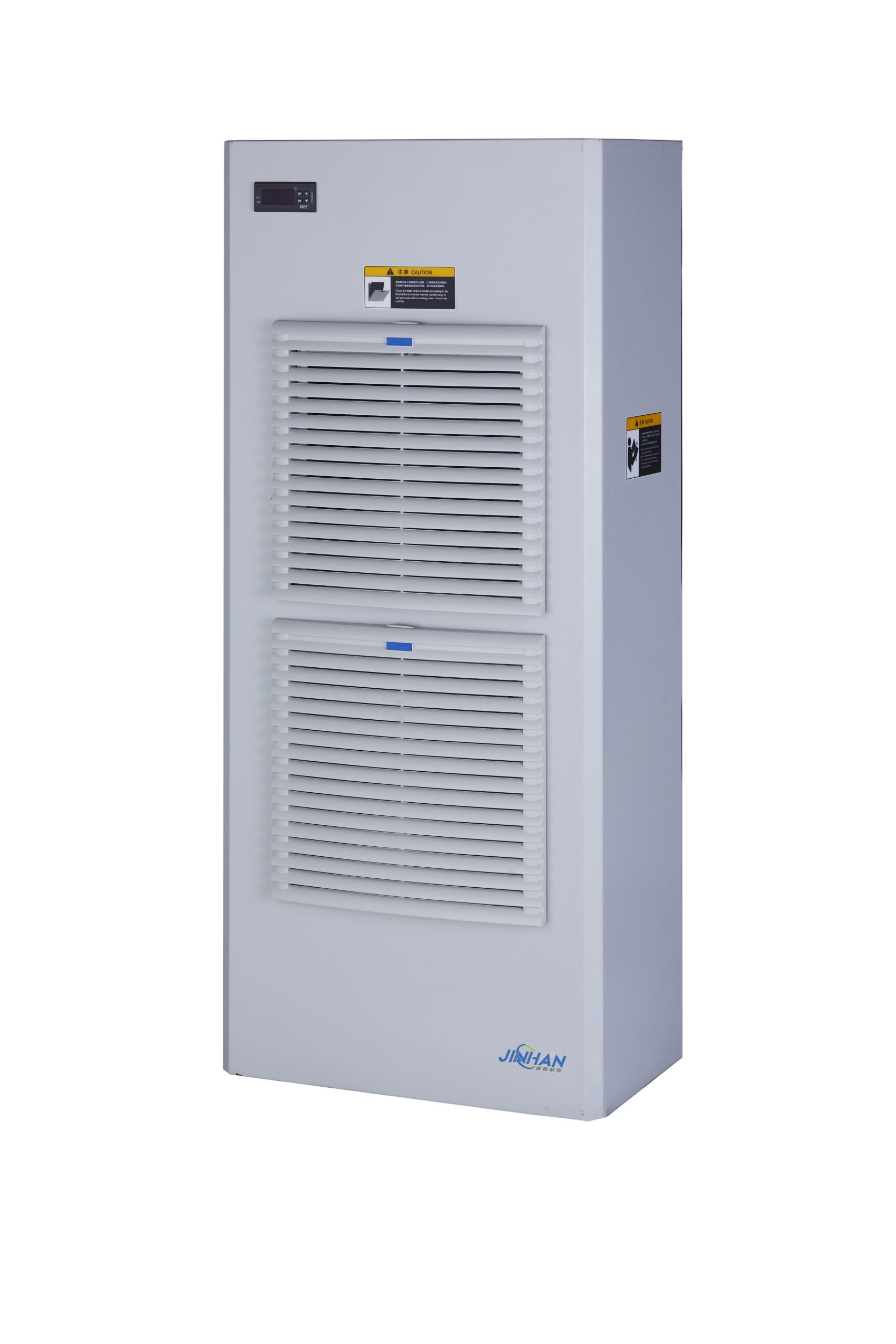

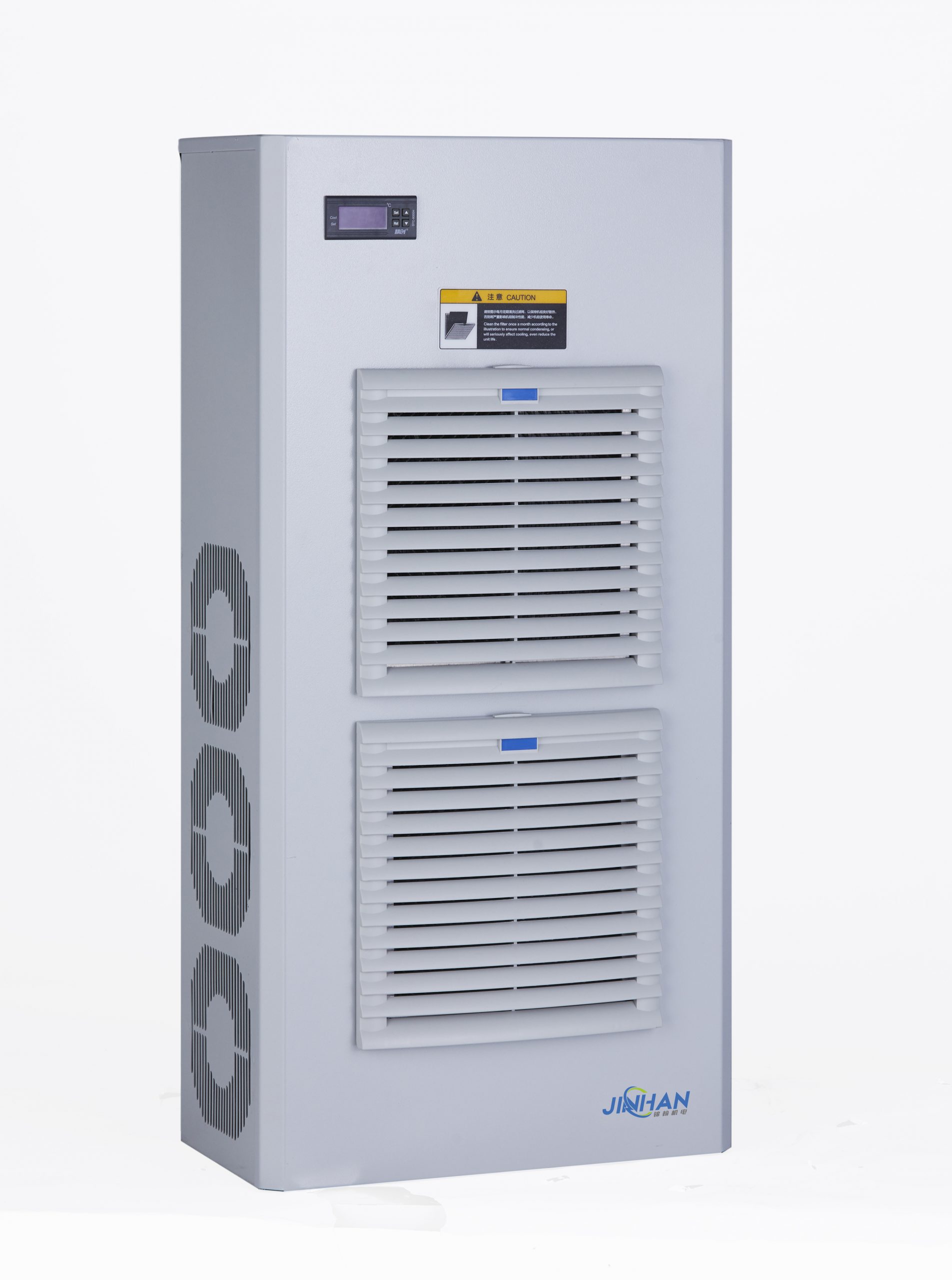

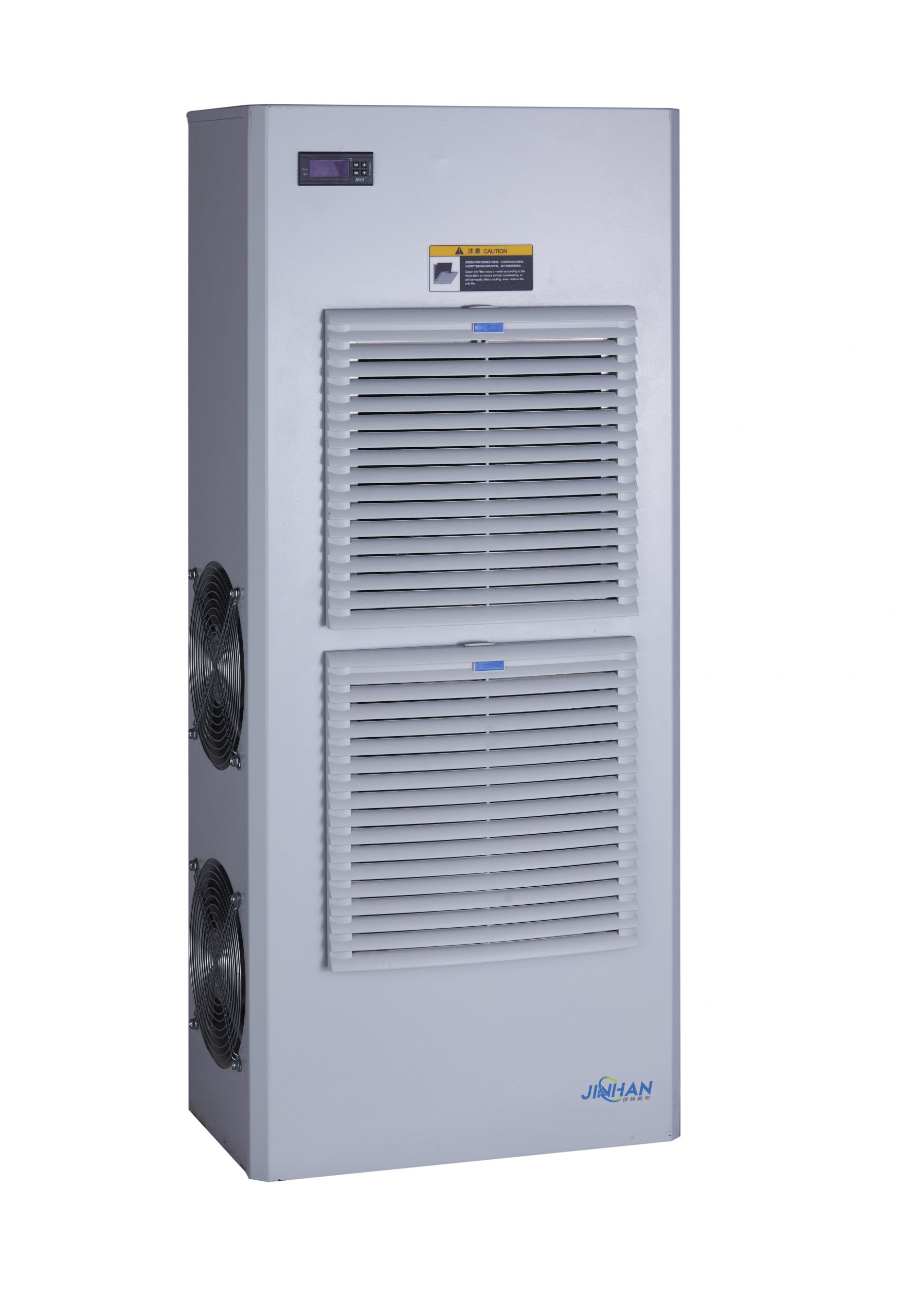

Wall Mounted Cabinet Air Conditioner

JH-JGC

Cooling capacity: 320W~4500W

  • Easy operating，high efficiency and energy saving.
  • Intelligent multi-protection function of Over temp alarm, Overload alarm, Self-diagnosis, Intelligent antifreeze, Flow alarm, Water level alarm, Pressure Alarm, etc.
  • Long service life with stable performance.
Download Contact Us
Wall Mounted Cabinet Air Conditioner
Model JH-JGC-320 JH-JGC-450 JH-JGC-630 JH-JGC-900 JH-JGC-1200 JH-JGC-1600 JH-JGC-2000 JH-JGC-2500 JH-JGC-3200 JH-JGC-4500
Item
Cooling capacity W 320 450 630 900 1200 1600 2000 2500 3200 4500
Btu/Hr 1092 1536 2150 3072 4096 5461 6826 8533 10992 15358
Cabinet temp. limits ℃ 15-40 15-40 15-40 15-40 15-40 15-40 15-40 15-40 15-40 15-40
Ambient temp. limits ℃ 15-55 15-55 15-55 15-55 15-55 15-55 15-55 15-55 15-55 15-55
Circuit max. pressure bar 26 26 26 26 26 26 26 26 26 26
Power supply V/Ph/Hz 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50
Rated current A 1.2 1.4 1.6 2.5 3.5 4.2 5.1 5.8 6.5 8.8
Input power W 245 290 350 520 775 910 1120 1280 1430 1950
Cabinet air flow m3/h 165 240 320 480 560 575 860 900 1050 1250
Ambient air flow m3/h 325 450 575 725 860 950 1250 1350 1450 1510
Refrigerant R134a R134a R134a R134a R22/R407C R134a/R407C/R22
Cabinet protection ration IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Ambient protection ration IP30 IP30 IP30 IP30 IP30 IP30 IP30 IP30 IP30 IP30
Noise level dB(A) 55 56 58 58 60 60 62 62 66 68
Weight kg 14 18 22 35 45 50 55 60 74 95
Dimension H mm 460 460 680 680 820 820 1080 1080 1080 1480
W mm 324 324 324 324 400 400 450 450 450 450
D mm 190 190 190 190 220 220 260 260 260 260
The above cooling capacity is based on the ambient temperature 35℃, the cabinet internal temperature 30℃.
  • Brand quality raw materials
  • Advanced production equipment and technology
  • Own R&D team assure the premium stable quality and technical support
  • Full range product assortments for your choice
  • Customized solutions supported

Core Value

Hundreds of models

Importd Brand Compressor

Excellent quality, provide lasting power!

Stainless steel tube evaporator

Stainless steel shell, industrial grade internal thread copper pipe, no "leakage" can be hit!

Touch screen controller

5 "color screen, dynamic display, detached experience

High efficiency low noise fan

Excellent performance, adapt to a variety of complex environment

Copper tube condenser with internal thread

Trapezoidal internal thread structure, efficiency increase by 30%

Brand Electrical Components

Electrical components are famous brands, reliable quality!

Multiple Protection

Overtemperature protection

Current protection

Self diagnosis

Intelligent antifreeze

Water flow alarm

Water level alarm

Pressure alarm

Time switching machine

Intelligent control

The data changes in a second

Color touch screen 5 inches HD true color touch screen, touch sensitive. Simple and fast operation, dynamic display unit operation!

Dynamic monitoring allows "no escape from failure"

Dynamic monitoring operation automatically displays the compressor, water pump and other working conditions, the unit state at a glance, all in control.

A "week by week" schedule relaxes your management

Cycle timing function Cycle timing function can operate the temperature pipeline effectively, and the unit start and stop time can be set freely within a week.

Intelligent anti-freezing can also operate in winter, such as "flying"

Intelligent antifreeze function When the water temperature is low, the unit automatically enters the antifreeze mode, no need to worry about the unit freezing!

Self-diagnosis is more than sweet

Self-diagnosis powerful self-diagnosis function, so that you easilly diagnose the fault.

That's how stable condensation control is

Condensation temperature control Intelligent control of condensing temperature, hight efficiency and energy saving, to ensure the compressor continuous and stable work.

Perfect Detail
  • Danfoss expansion valve
  • Each pipe fitting is made of stainless steel
  • Each circuit is clearly classified
  • Every piece of sheet metal is itted together
  • All solider joints are cleaned
  • Stainless steel water pump
  • Brand Electrical Components
  • Danfoss drying filter



  • Scientific Research.
  • Automobile Industry.
  • Food & Drinks Industry.
  • Paper & Printing Industry.
  • Heavy Machinery Industry.
  • Plastic & Rubber Industry.
  • Electronic & Chip Industry.
  • Chemical & Pharmaceutical Industry.
